Methods

Supported Methods

The following methods are available in PyPalmSens:

Voltammetric Techniques

Pulsed Techniques

Amperometric Techniques

Potentiometric Techniques

Coulometric Techniques

Chronocoulometry

Other Techniques

Setting up a Method

Here is an example of creating a method for a square-wave voltammetry measurement versus the open circuit potential:

>>> import pypalmsens as ps

>>> method = ps.SquareWaveVoltammetry(
...    pretreatment={
...        'conditioning_potential': 2.0,  # V
...        'conditioning_time': 2,  # seconds
...    },
...    versus_ocp={
...        'mode': 3,  # versus begin and end potential
...        'max_ocp_time': 1,  # seconds
...    },
...    begin_potential=-0.5,  # V
...    end_potential=0.5,  # V
...    step_potential=0.01,  # V
...    amplitude=0.08,  # V
...    frequency=10,  # Hz
... )

Since methods are built on Pydantic models, you can easily modify their attributes after creation:

>>> method.begin_potential = -1.0
>>> method.end_potential = 1.0
>>> method.step_potential = 0.02

Methods can also be converted to and from a dictionary:

>>> dumped = method.model_dump()
>>> dumped
{..., 'equilibration_time': 0.0, 'begin_potential': -1.0, 'end_potential': 1.0, 'step_potential': 0.02, 'frequency': 10.0, 'amplitude': 0.08, ...}
>>> method2 = ps.SquareWaveVoltammetry(**dumped)
>>> method == method2
True

To copy a method and make updates, use model_copy:

>>> method3 = method.model_copy(update={'equilibration_time': 10.0})
>>> method == method3
False

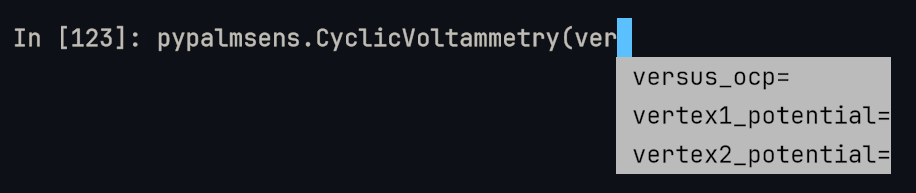

!!! Tip: Code Completion

The VSCode Debug Console or other Python REPL environments like [IPython](https://ipython.readthedocs.io) will offer auto-completion for properties and functions.

![Debug console in VSCode](assets/ipython_autocomplete.png){ width="80%" }

Common settings

Many settings are shared across methods. For a complete list, please refer to pypalmsens.settings.

If you don't provide any arguments, the default values will be loaded automatically. These defaults can be accessed directly via attributes on the method instance.

For example:

>>> cv = ps.CyclicVoltammetry()
>>> cv.current_range
CurrentRange(max='10mA', min='1uA', start='100uA')

You have two ways to set the current range, for instance, if you want to set the start current to 10 μA.

By passing current ranges as an argument during initialization

>>> cv = ps.CyclicVoltammetry(current_range={'start': '10uA'})
>>> cv.current_range   # (1)!
CurrentRange(max='10mA', min='1uA', start='10uA')

Only the start value was set, so the min/max are populated with the defaults.

By updating the attributes after initialization

>>> cv = ps.CyclicVoltammetry()
>>> cv.current_range.start = '10uA'

Fixed ranges

If you need to use a fixed current (or potential) range, you can simplify the code by passing the current range string directly. This automatically sets min, max, and start to the same value.

>>> cv = ps.CyclicVoltammetry(current_range='10uA')
>>> cv.current_range
CurrentRange(max='10uA', min='10uA', start='10uA')

Validation

Methods are defined as Pydantic Models. Pydantic is a library for defining a schema via models. They are very similar to Python dataclasses in the way that they work.

The important difference is that Pydantic offers more options for validation, serialization, and conversion.

This means is automatically converts dictionaries to the correct type (if the fields can be matched), for example:

>>> import pypalmsens as ps

>>> cv = ps.CyclicVoltammetry(
...     current_range = {'min':'10mA', 'max':'1uA', 'start':'100uA'}
... )
>>> cv.current_range
CurrentRange(max='1uA', min='10mA', start='100uA')

And gives an errorr when trying to overwrite types by invalid dictionaries or instances:

>>> cv.current_range='foo'
Traceback (most recent call last):
ValidationError: 3 validation errors for CyclicVoltammetry
current_range.max
  Input should be '100pA', '1nA', ... or '1A' [type=literal_error, input_value='foo', input_type=str]
    For further information visit https://errors.pydantic.dev/2.13/v/literal_error
current_range.min
  Input should be '100pA', '1nA', ... or '1A' [type=literal_error, input_value='foo', input_type=str]
    For further information visit https://errors.pydantic.dev/2.13/v/literal_error
current_range.start
  Input should be '100pA', '1nA', ... or '1A' [type=literal_error, input_value='foo', input_type=str]
    For further information visit https://errors.pydantic.dev/2.13/v/literal_error

It is also helps prevents setting non-existant variables and guard against typos:

>>> cv = ps.CyclicVoltammetry(foo=123, scanreat=2.0)
Traceback (most recent call last):
ValidationError: 2 validation errors for CyclicVoltammetry
foo
  Extra inputs are not permitted [type=extra_forbidden, input_value=123, input_type=int]
    For further information visit https://errors.pydantic.dev/2.13/v/extra_forbidden
scanreat
  Extra inputs are not permitted [type=extra_forbidden, input_value=2.0, input_type=float]
    For further information visit https://errors.pydantic.dev/2.13/v/extra_forbidden

'Strict' mode helps catching variable errors, for example when you set a string when a number (float) is expected:

>>> cv = ps.CyclicVoltammetry(scanrate='1.0')
Traceback (most recent call last):
ValidationError: 1 validation error for CyclicVoltammetry
scanrate
  Input should be a valid number [type=float_type, input_value='1.0', input_type=str]
    For further information visit https://errors.pydantic.dev/2.13/v/float_type

It also prevents setting non-existant attributes:

>>> cv.scanreat=1.0
Traceback (most recent call last):
ValidationError: 1 validation error for CyclicVoltammetry
scanreat
  Object has no attribute 'scanreat' [type=no_such_attribute, input_value=1.0, input_type=float]
    For further information visit https://errors.pydantic.dev/2.13/v/no_such_attribute

Or unexpected values:

>>> cp = ps.ChronoPotentiometry(applied_current_range='1GA')
Traceback (most recent call last):
ValidationError: 1 validation error for ChronoPotentiometry
applied_current_range
  Input should be '100pA', '1nA', ... or '1A' [type=literal_error, input_value='1GA', input_type=str]
    For further information visit https://errors.pydantic.dev/2.13/v/literal_error

Starting a measurement

For further information on how to run a measurement:
